A driver is essentially a tiny loudspeaker built inside your earphones. Its job is to take the electrical signal from your audio source, move a diaphragm back and forth, and push air to create sound waves that your ears can hear. While the principle is simple, the way this process is achieved varies depending on the type of driver. Some designs use magnets and coils, while others rely on electrostatic charges. Because each design moves air differently, they influence how the sound feels whether it’s punchy and bass-heavy, airy and detailed, or smooth and natural.
Table of Contents
The Main Types of IEM Drivers

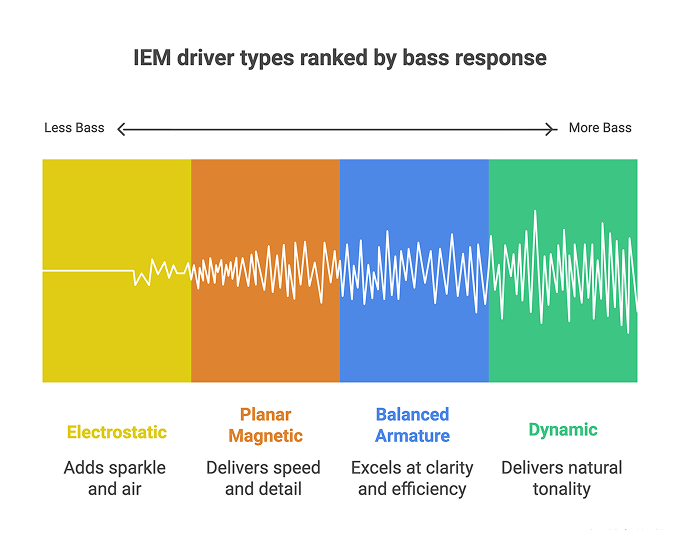

Each type of IEM driver has its own strengths and trade-offs. Dynamic drivers deliver natural tonality and powerful bass, while balanced armatures excel at clarity and efficiency but may lack low-end weight. Planar magnetic drivers bring speed and detail, though they demand good power and fit to shine. Electrostatic tweeters add sparkle and air to the highest frequencies but increase cost and rely on careful tuning. No single driver is universally “better”—the right choice depends on how the technology is implemented and what kind of listening experience you value most.
Dynamic Drivers (DD)
Dynamic drivers work by moving a diaphragm with the help of a coil inside a magnetic field. This classic design is widely used because it delivers powerful bass, a wide frequency response, and a cohesive sound signature. However, the diaphragm is relatively heavy, which means it can struggle with very fast treble, and the performance depends heavily on achieving a proper seal with the ear tips.
Balanced Armatures (BA)
Balanced armatures are much smaller than dynamic drivers and were originally developed for hearing aids. They use a pivoting “armature” inside a tiny box to move a diaphragm. Because they are compact and efficient, multiple BAs can fit into a single earpiece, giving excellent clarity in mids and highs. Still, a single BA covers only a narrow frequency range, and even in groups, their bass response often sounds less natural compared to dynamic drivers.
Planar Magnetic Drivers
Planar magnetic drivers are a newer addition to IEMs, borrowed from high-end over-ear headphones. They use a thin diaphragm with etched traces suspended between magnets, allowing the entire surface to move and push air evenly. The result is fast, detailed sound with low distortion and excellent bass extension. On the downside, planar drivers are more expensive, require more power, and can lose much of their bass impact if the ear tip seal is broken.
Electrostatic Drivers & EST Tweeters
True electrostatic drivers use a charged diaphragm between stators and need special energizers, so they are typically reserved for full-size headphones. In IEMs, you’ll usually find EST tweeters – instead miniature electret units designed to handle only ultra-high treble. They add sparkle and air above 10 kHz, giving a sense of space, but they don’t contribute to bass or mids. They also increase cost and rely on careful integration with other drivers for balanced sound.
Single Driver vs Multi-Driver IEMs
The debate between single-driver and multi-driver IEMs is one of the oldest in the hobby. A single dynamic driver can deliver a very natural and cohesive sound because there are no crossovers or handoffs between different drivers. When tuned well, a single-DD setup can provide deep bass and an enjoyable overall presentation, though it may fall short in extreme treble extension or pinpoint separation.
Multi-driver setups, such as those with multiple balanced armatures or hybrid designs combining dynamic and BA units, allow each driver to specialize in a specific frequency range. This reduces distortion and can improve clarity, but it also introduces complexity. If the crossover or tuning is poorly implemented, the sound can feel artificial or disjointed. Ultimately, more drivers don’t guarantee better sound, a well-tuned single driver can outperform a poorly tuned multi-driver IEM.
Does Driver Size Matter in IEMS?
Driver size is another specification that companies love to highlight, with claims about “13 mm bass drivers” or “custom micro-drivers.” In theory, larger drivers can move more air, which usually translates into deeper or louder bass. However, size alone does not determine quality. The materials used, the venting design, and especially the tuning play a much bigger role. A carefully tuned 9 mm driver can outperform a poorly tuned 15 mm driver, so it’s better to focus on implementation rather than raw size.
Crossovers and Acoustic Design
When an IEM uses multiple drivers, it needs a way to divide the audio frequencies between them. This is handled by crossovers and acoustic design. Electrical crossovers are electronic filters that direct low, mid, and high frequencies to their dedicated drivers. Acoustic crossovers, on the other hand, rely on physical elements like tube lengths and dampers to shape the sound. The design of the housing, the size of the enclosure, and the venting system also influence bass response, isolation, and comfort. A well-designed crossover ensures that multiple drivers blend seamlessly, while a poor one can create gaps, harshness, or unnatural timbre.
Which Setup for IEMS Fits You Best?
Choosing the right driver for IEMS setup really comes down to what you value most in sound and comfort. Each design has its own strengths:
- Planar IEMs are still niche but stand out for their speed, resolution, and linear bass response. They’re a solid choice for detail lovers who want a unique listening experience.
- All-BA IEMs are compact and provide excellent isolation. They shine in the mids and highs, making them a favorite for stage monitoring where clarity is essential.
- Single-DD IEMs deliver natural timbre and powerful bass. Thanks to their cohesive sound, they’re considered reliable all-rounders that work well across many genres.
- Hybrid IEMs combine a dynamic driver for bass with balanced armatures for mids and treble. This design is popular because it offers the best of both worlds — strong low-end impact with detailed upper ranges.
- Tri-brid IEMs go a step further by adding EST tweeters. These enhance the treble region with extra sparkle and micro-detail, which appeals to listeners who enjoy a highly extended top end.
Common Myths About Drivers
There are several myths that often mislead buyers. The first is that more drivers automatically mean better sound – this is not true. Quality and tuning are far more important. Another misconception is that bigger drivers always sound better. While size can influence bass potential, it’s not a guarantee of quality. Some also believe that EST drivers improve bass performance, but they only affect treble. Finally, the idea that single-driver IEMs cannot compete with multi-driver models is false; many high-end single-DD IEMs are praised for their natural and engaging sound.
What Really Shapes Sound Quality
The real factors that determine sound quality are more practical. The tuning and whether the IEM follows a balanced target curve, such as the Harman curve, play a huge role in how enjoyable it sounds. Fit and seal are equally critical, since even the best driver will sound thin and weak if the ear tips don’t seal properly. The quality of the driver itself also matters, as not all dynamic or balanced armature units are made equal. Finally, good crossover integration ensures smooth handoffs between drivers, avoiding sharp peaks or missing frequencies.
Quick Buying Tips
When shopping for IEMs, avoid focusing solely on driver count. Instead, look for measurements, reviews, and the tuning style of the brand. Think about your own preferences: if you love bass, a single-DD or hybrid design will likely suit you best. If clarity and detail are your priority, an all-BA or tri-brid design may be more appealing. Planars are worth considering if you want to experience their unique speed and timbre. Don’t forget that ear tips can dramatically change the sound, so it’s worth experimenting with foam and silicone options. Lastly, match your IEMs to your source — sensitive BAs may reveal hiss in low-quality outputs, while planars often require more power to perform at their best.
